A Case Study on Favicon Optimization

The Smallest Asset with the Biggest Impact

In the world of Shopify development, we often obsess over page speed, Liquid logic, and high-intensity sprints to optimize the "Bone" framework. However, a recent deep dive into our own agency site Codekanon, reminded us that the smallest detail—the favicon—is governed by the same strict laws of physics and data integrity as our most complex JavaScript.

This post documents the journey of moving from a "Missing Icon" to a verified search presence, highlighting why the path to a perfect search result is a mix of data science and technical discipline.

Step 1: Solving the "MIME Type" Mismatch

Our investigation began with a common developer trap: the preference for SVGs. While SVGs are superior for high-resolution displays because they are code-based vectors, the Googlebot-Image crawler is a traditionalist.

We discovered a "Data Type Mismatch." Our code was signaling type="image/png", but the source was an SVG.

• The Developer Insight: Browsers like Chrome are adaptive; they will "fix" this mismatch in the background to show your icon. But a crawler bot is a rigid logic gate. If the declaration doesn't match the payload, the bot defaults to a generic globe icon.
• The Action: We reverted to a high-quality PNG for the search-facing link. This ensured that the bot’s "Contract" was honored, removing any friction during the crawl.

Step 2: Protocol-Relative URLs vs. Explicit Paths

In the Shopify ecosystem, you’ll notice that most image assets—including our favicon—use URLs starting with // (e.g., //codekanon.com/cdn/...). This is known as a Protocol-Relative URL.

• How it works: It tells the browser, "Use whatever protocol the current page is using." If the site is on HTTPS, it fetches via HTTPS. It’s a flexible, standard way Shopify handles content delivery.
• The Refinement: For our "Green Light" optimization, we looked at this through the lens of a crawler bot. While the bot can resolve a // link, it’s technically one more logic gate the bot has to pass through.
• The Purist Approach: In our workflow, we can use Direct Returns. By explicitly prepending https: to our favicon link in the theme.liquid code, we provide an absolute, non-negotiable path. We aren't asking the bot to "guess" or "inherit" a protocol; we are giving it a fixed data point. In a high-intensity crawl, removing even these micro-ambiguities ensures the bot has zero reasons to skip the asset.

Step 3: Understanding the "16-Pixel Grid" (The Scaling Reality)

This is where the math of design meets the physics of the screen. We worked closely with our design team to understand why certain elements of the icon appeared to "disappear" in search results.

It isn't an error; it’s Algorithmic Refinement.

• The Math: When Google scales an icon down to 16 x 16 pixels, it must prioritize the most legible information.
• The Safe Zone: Google often applies a circular mask to favicons in mobile search. If the "Logo Mark" is the central subject, the bot focuses on that area to ensure brand recognition at a tiny scale.
• The Result: Any peripheral details or small text are often "trimmed" by the bot's rendering engine to prevent the icon from becoming a blurry, illegible smudge. By providing a clean, bold "Logo Mark," we gave the bot the best possible data to work with.

Step 4: The Verification Fast-Track

One of the most valuable "EXP" gains from this project was the timing of the crawl. Usually, waiting for a natural crawl can take weeks.

• Manual Intervention: Manual Intervention can be achieved by utilizing Google Search Console (GSC) to verify our domain via DNS TXT records.
• The Result: By proving ownership at the domain level, we gain the ability to "Request Indexing." This moves our homepage to the front of the queue, and Google’s "FaviconBot" verifies our new PNG code in less than 48 hours.

Step 5: The "Patience" Protocol (Bot Timing & Lifecycle)

The final piece of the puzzle is understanding the Temporal Logic of search engines. Even with perfect code, you are at the mercy of the "Crawler Queue." Based on our deep dive, here is the verified breakdown of how long you can expect to wait for the "fruit" of your labor to show up.

The Natural Discovery Timeline (No Manual Push): If you leave the site to its own devices, Google handles your favicon as a low-priority background task. Because brand identities rarely change, the bot doesn't check them as frequently as it checks your price or product stock.

• Phase 1: Discovery (3–14 Days): The standard Googlebot (Desktop/Mobile) crawls your homepage. It notices the HTML code has changed from SVG to PNG.
• Phase 2: Verification (1–3 Weeks): The specific Googlebot-Image crawler is triggered. This bot is the one that actually fetches the physical file to see if it meets the "Safe Zone" and "16-pixel" criteria.
• Phase 3: Global Propagation (Up to 4 Weeks): Once verified, the icon must propagate across Google’s global data centers. You might see the new icon in a New York search result but still see the old "Globe" icon in a London search result for a few days.

Crawler Speed Comparison: Not all bots are created equal. Here is how they rank in terms of "urgency".

• Social Media Bots (Facebook/Instagram/LinkedIn): * Speed: Near-Instant.
  Logic: These bots "scrape" on demand. The moment you paste a link into a post, they go look for the image immediately.
• Main Googlebot (Search/Mobile): * Speed: High (Daily to Every 48 Hours).
  Logic: This bot is hungry for content. It checks your site frequently to see if you’ve updated your blog or changed your prices.

• Bing & DuckDuckGo Bots: * Speed: Medium (1 to 2 Weeks).
  Logic: These search engines have a smaller "crawl budget" and tend to revisit sites less frequently than Google.
• Googlebot-Image (The Favicon Fetcher): * Speed: Low (14 to 30 Days).
  Logic: This is the slowest bot in the ecosystem. It assumes your logo is permanent, so it stays at the very bottom of the priority list unless you manually "nudge" it via Google Search Console.


Conclusion: Data-Driven Development

As a "Vanilla JS" purist, I’ve learned that being a developer isn't just about writing code, it's about being a data scientist for your clients. Every asset, no matter how small, must follow the rules of the system it lives in.

For Codekanon, the lesson was clear:

1. Accuracy over Vibe: Match your MIME types perfectly.
2. Logic over Complexity: Use absolute paths and stable file formats (PNG).
3. Respect the Grid: Design for the 16 x 16 reality of the search engine.
4. Master the Clock: Understand bot timings to manage expectations.

By following these steps, we didn't just fix a "broken" icon—we optimized our brand's digital identity for the most powerful bot on the planet.

This table serves as a quick reference for other site owners.

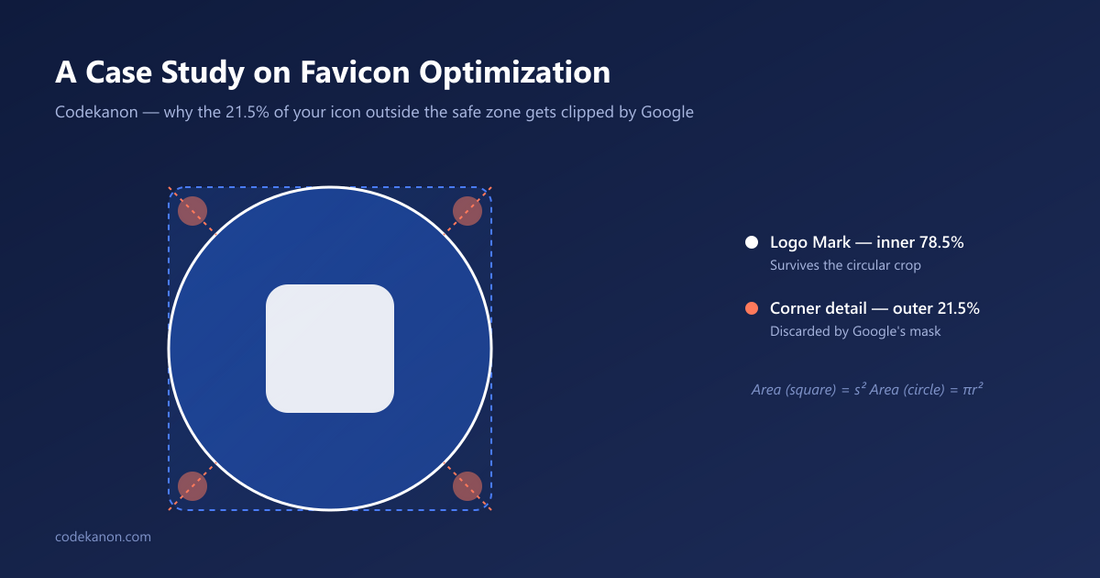

The Physics of the "Safe Zone"

In a standard favicon file, we are working with a square S. However, Google’s rendering engine often applies a circular mask C to that square.

Area_Square = s²

Area_Circle = πr²

^{If your square is 32px x 32px, the radius (r) of the safe circle is 16px. This means roughly 21.5% of the corners of your square are discarded in a circular view.}

^{The Lesson: If your brand identity (like the text your designer added) sits in that outer 21.5% area, it is mathematically guaranteed to be cut off by Google's UI. This is why we focus on the "Logo Mark" centered within the inner 78.5% of the canvas.}
